803 Revolver Gloss Black Milled
803 Revolver | Gloss Black | Gloss Black/Milled

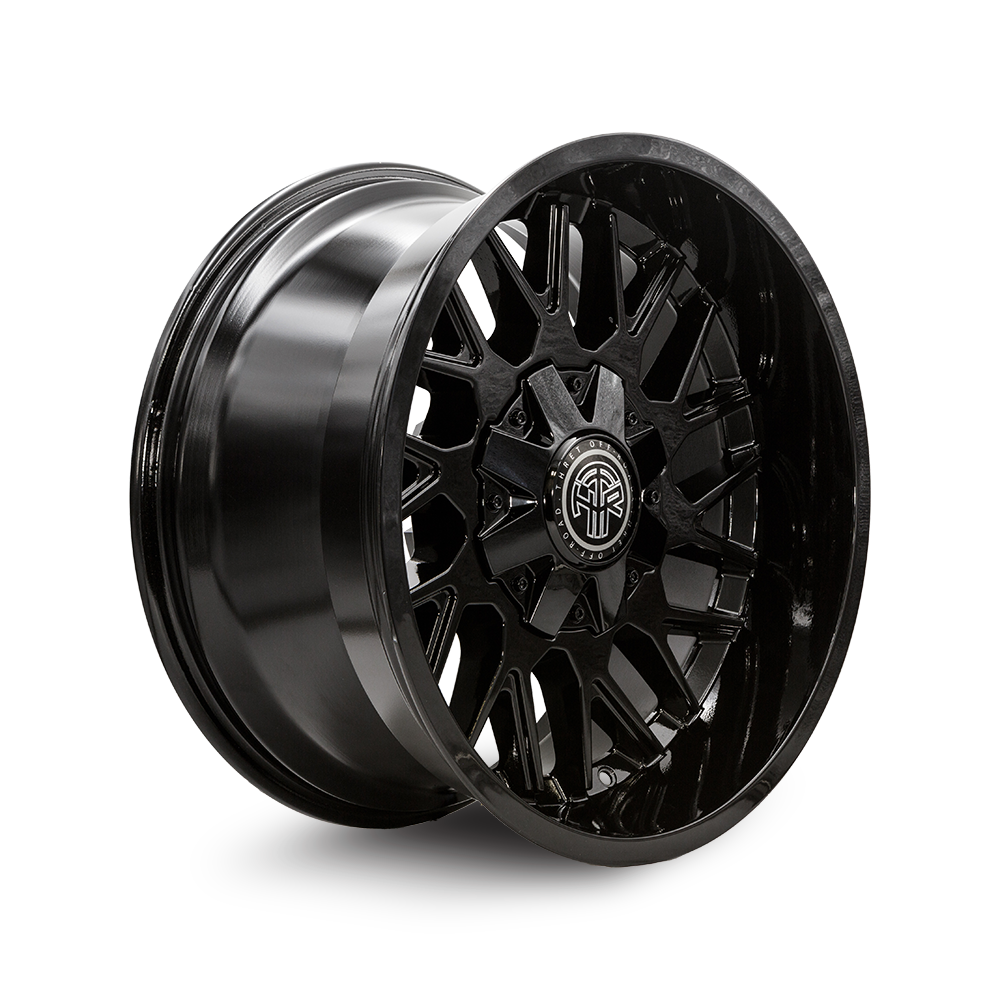

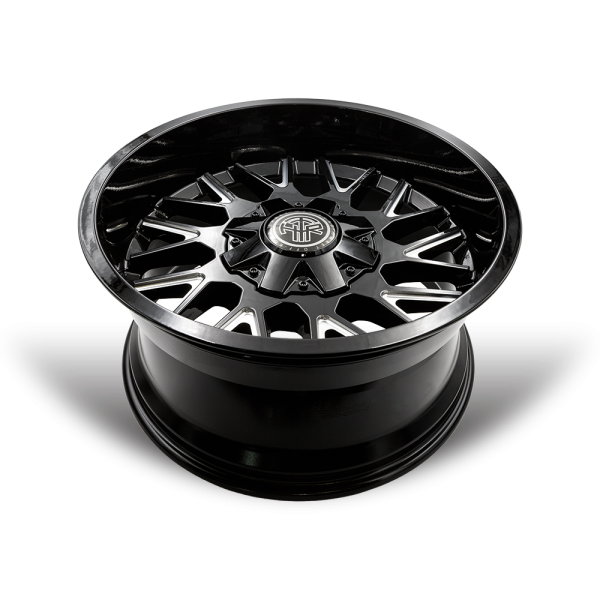

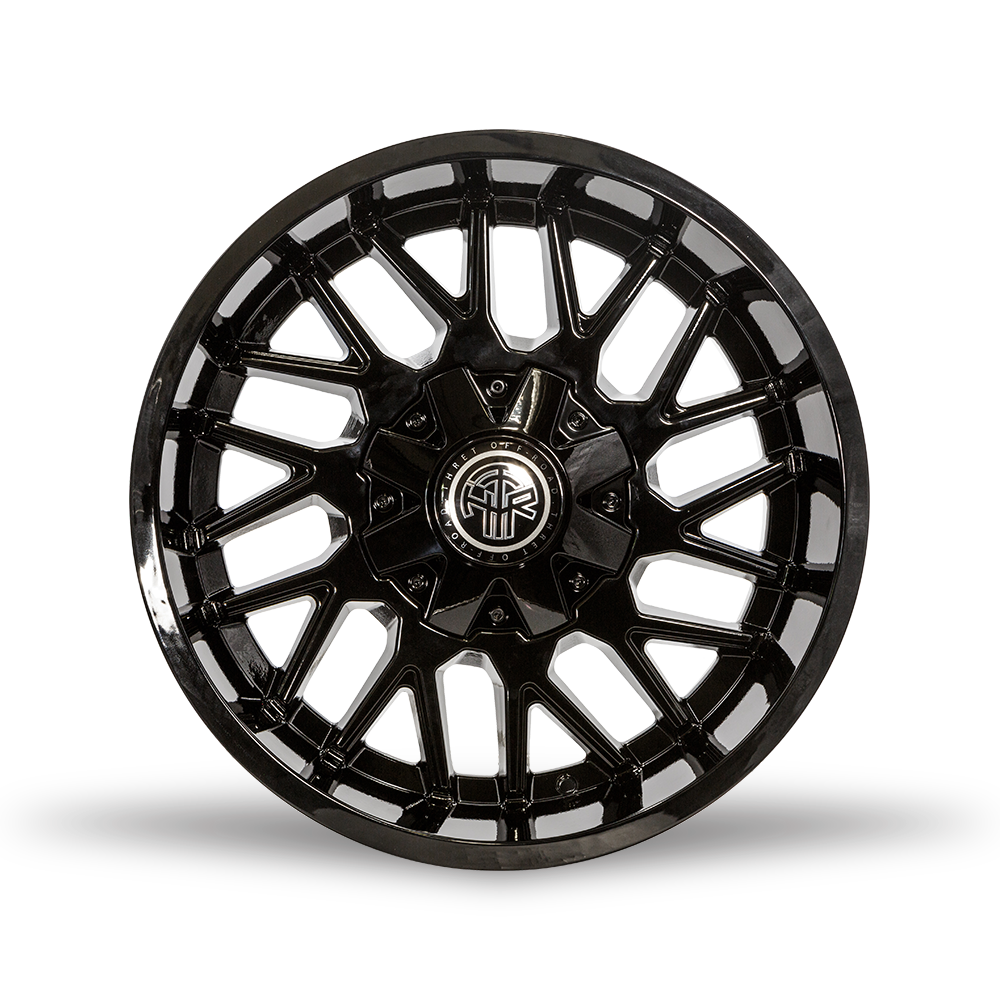

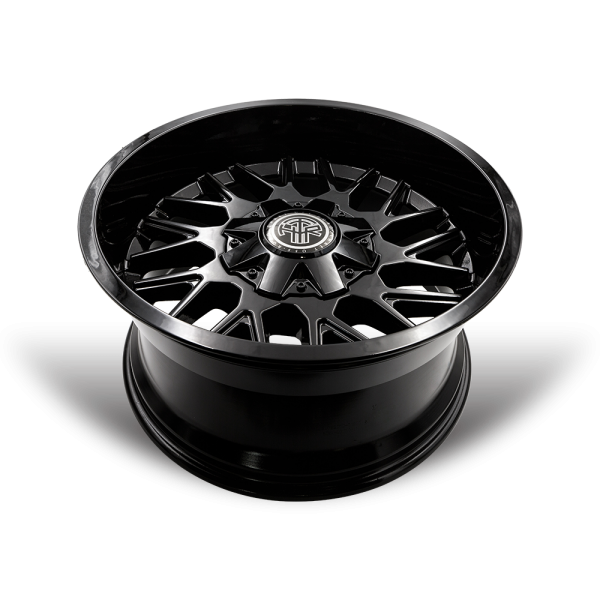

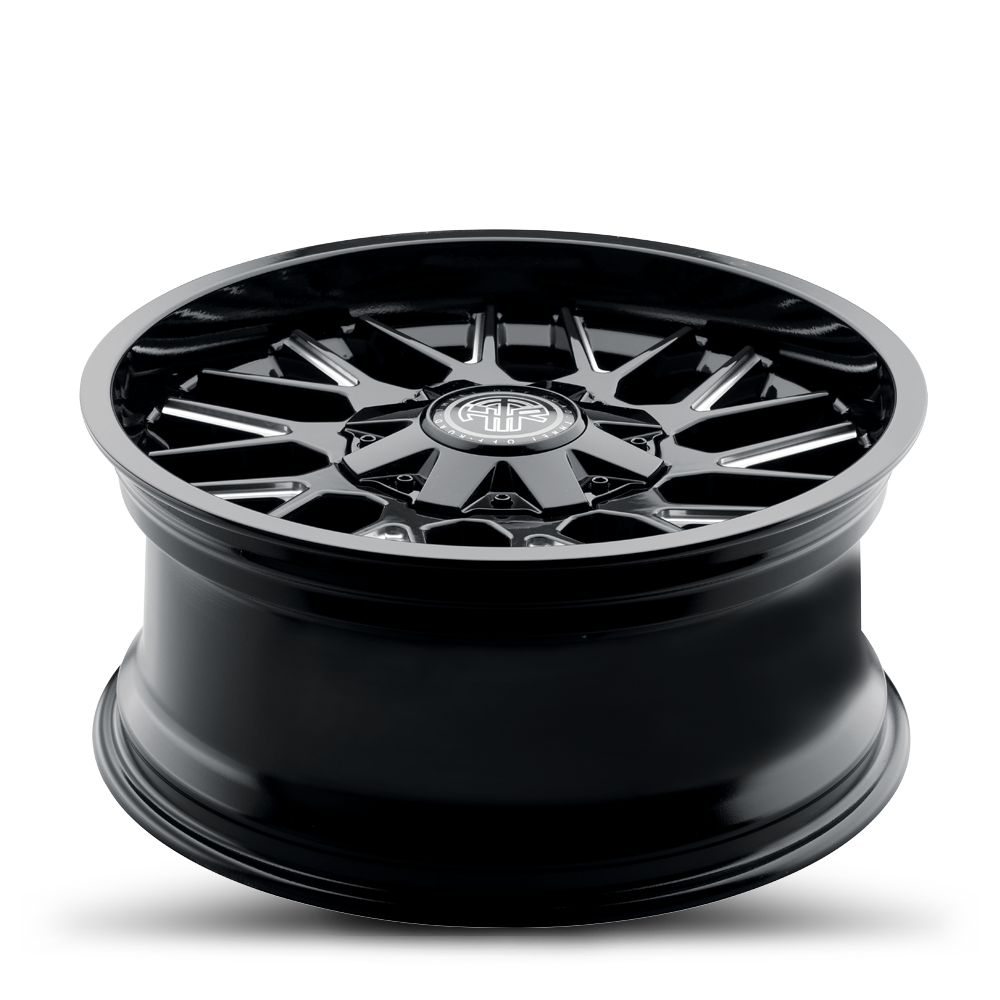

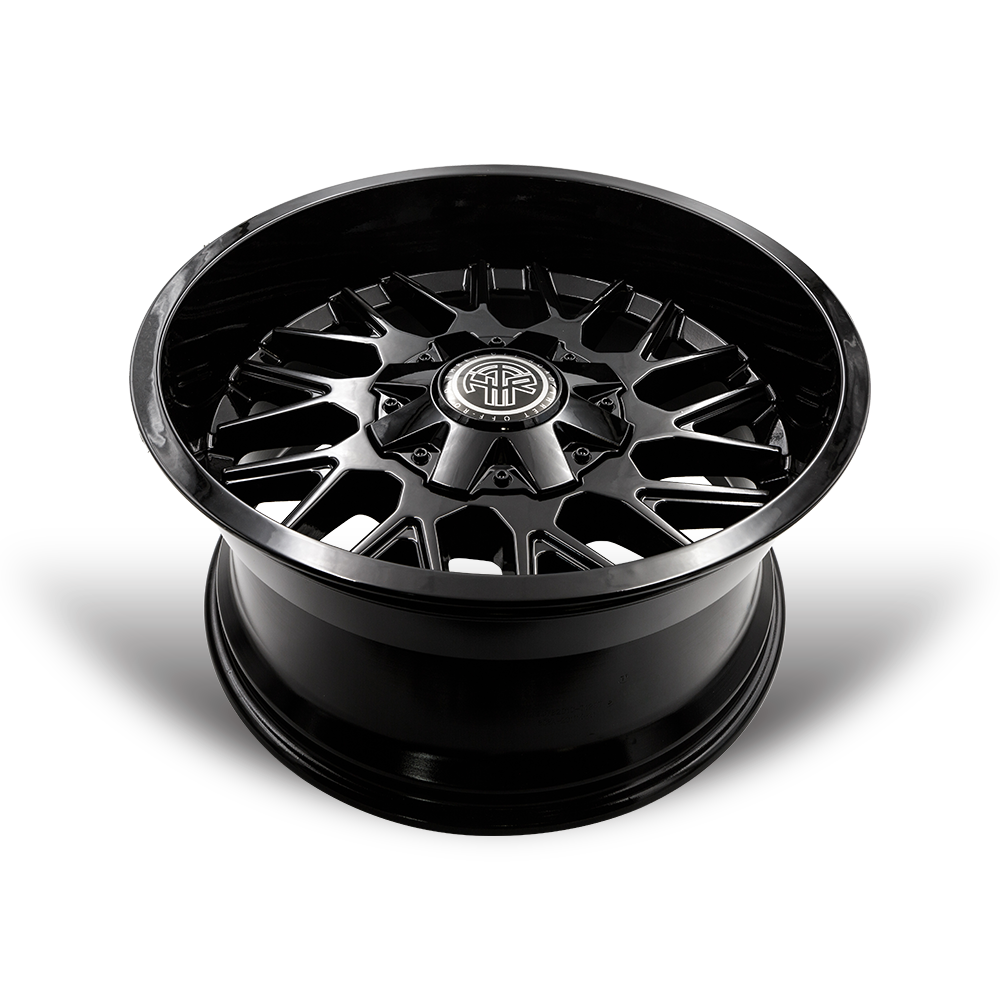

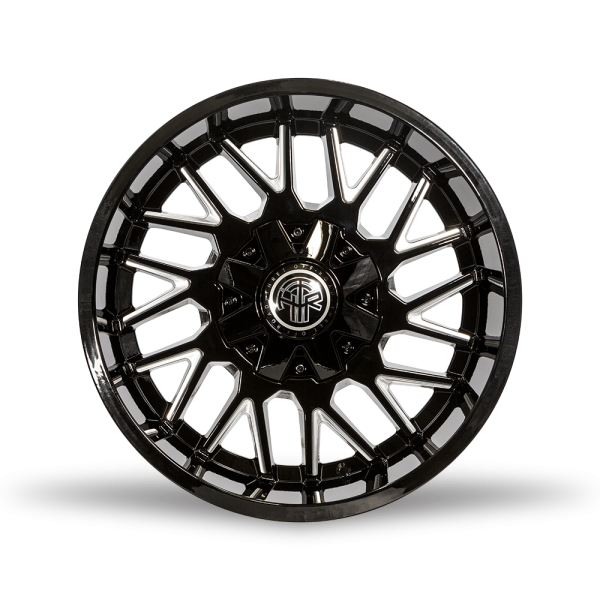

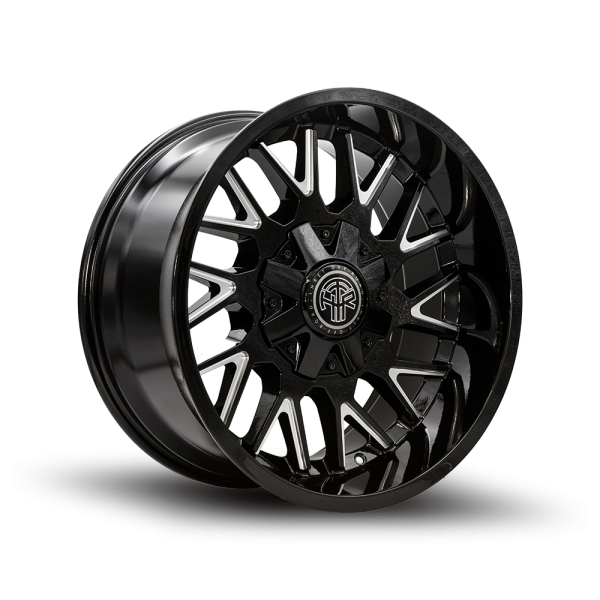

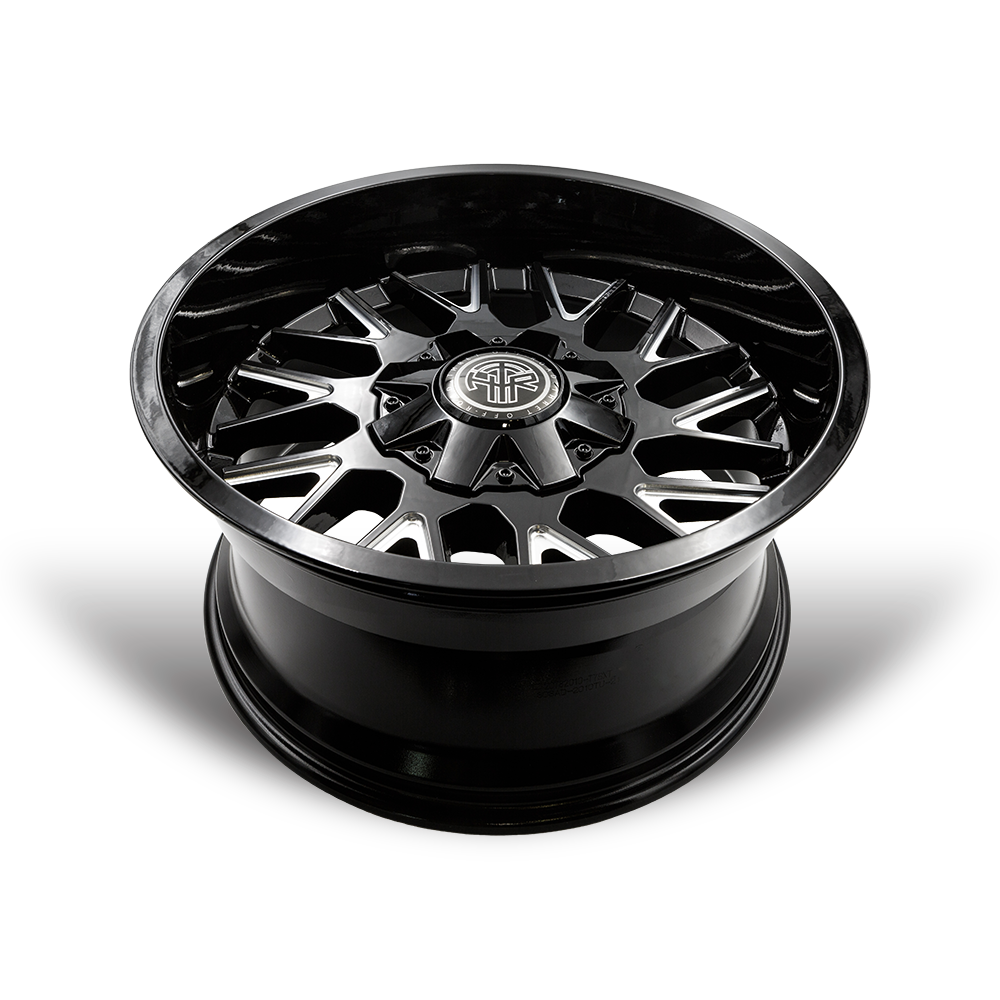

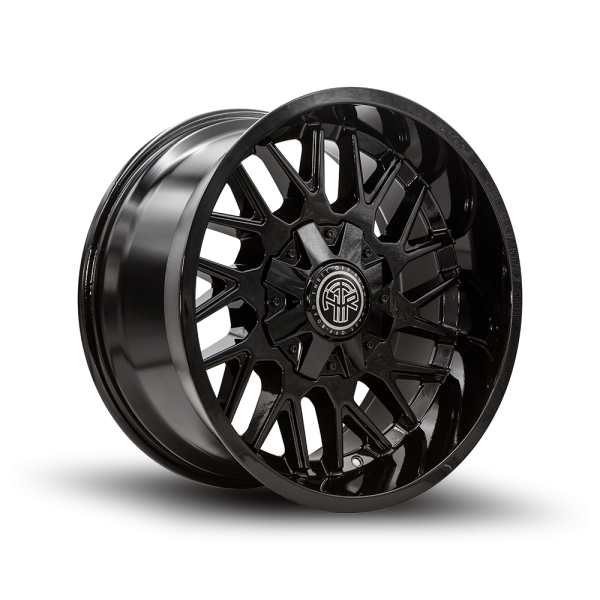

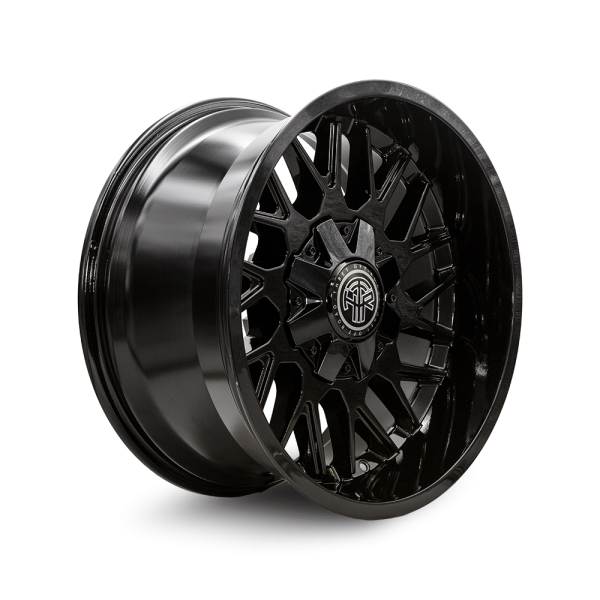

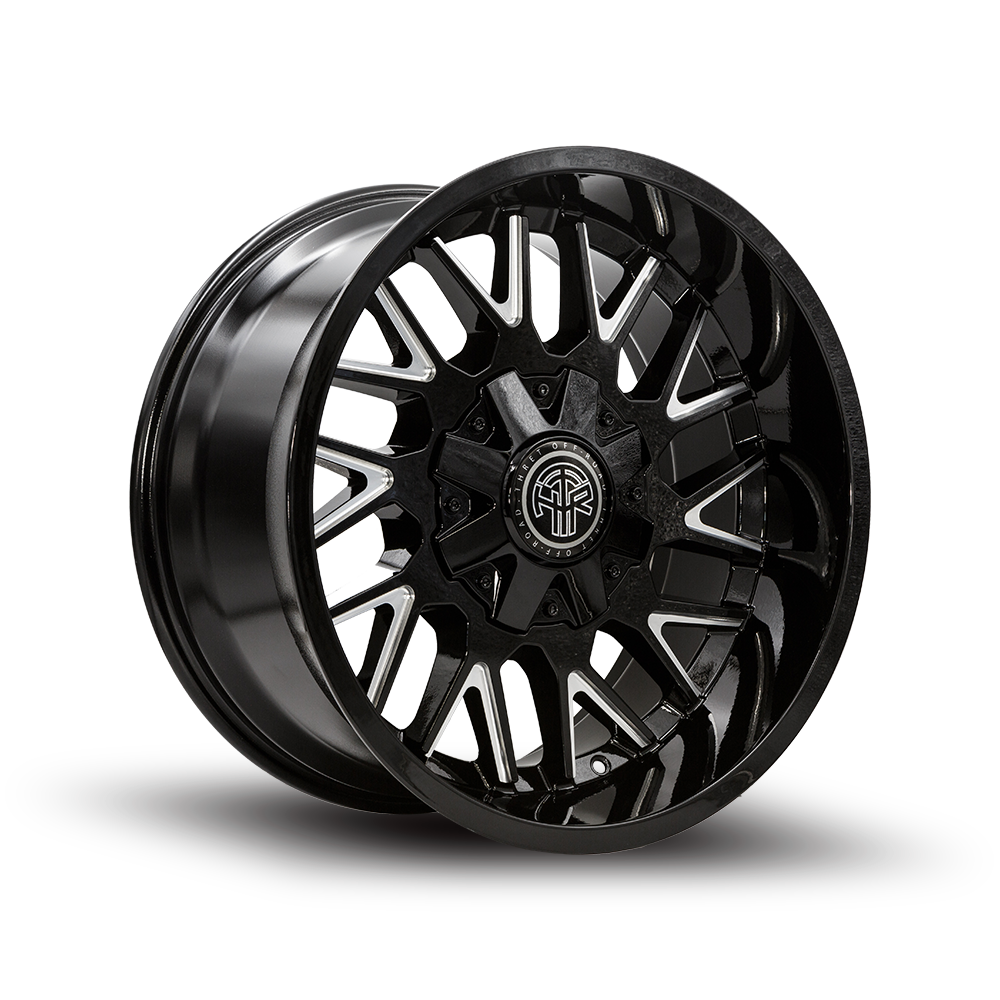

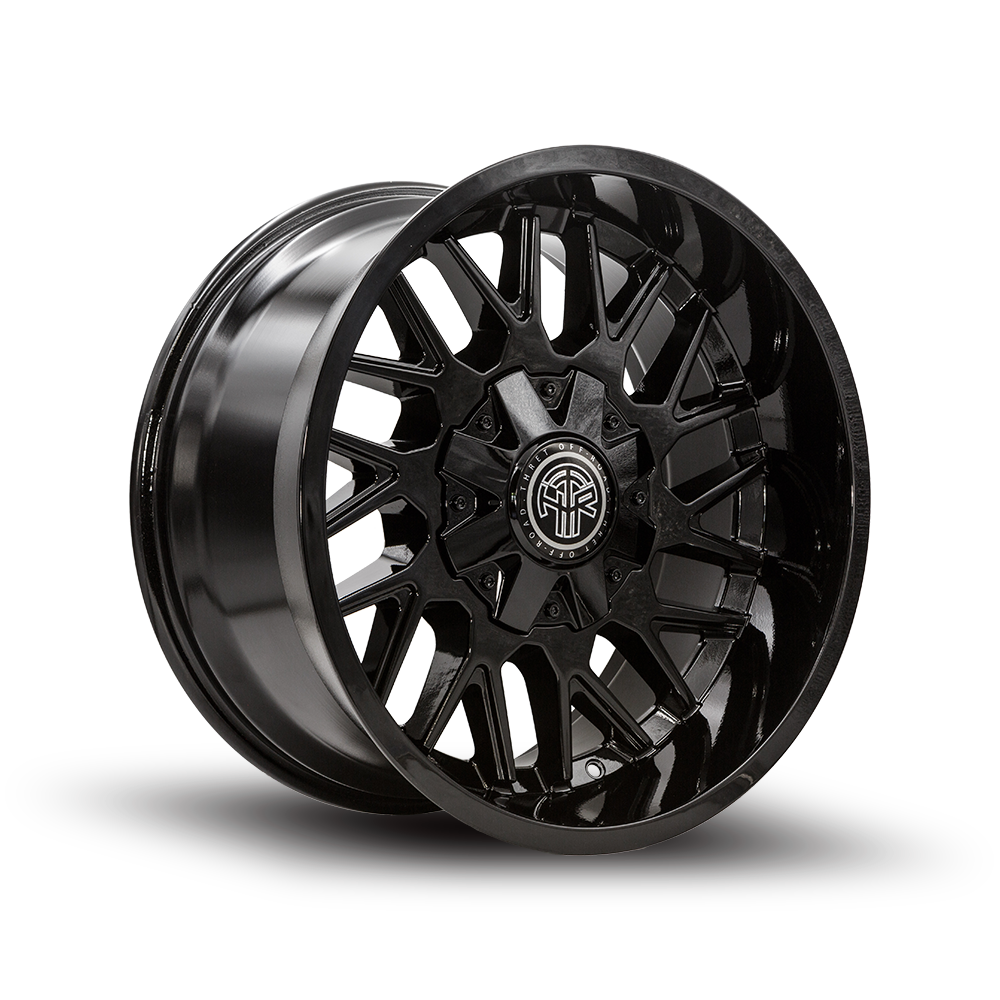

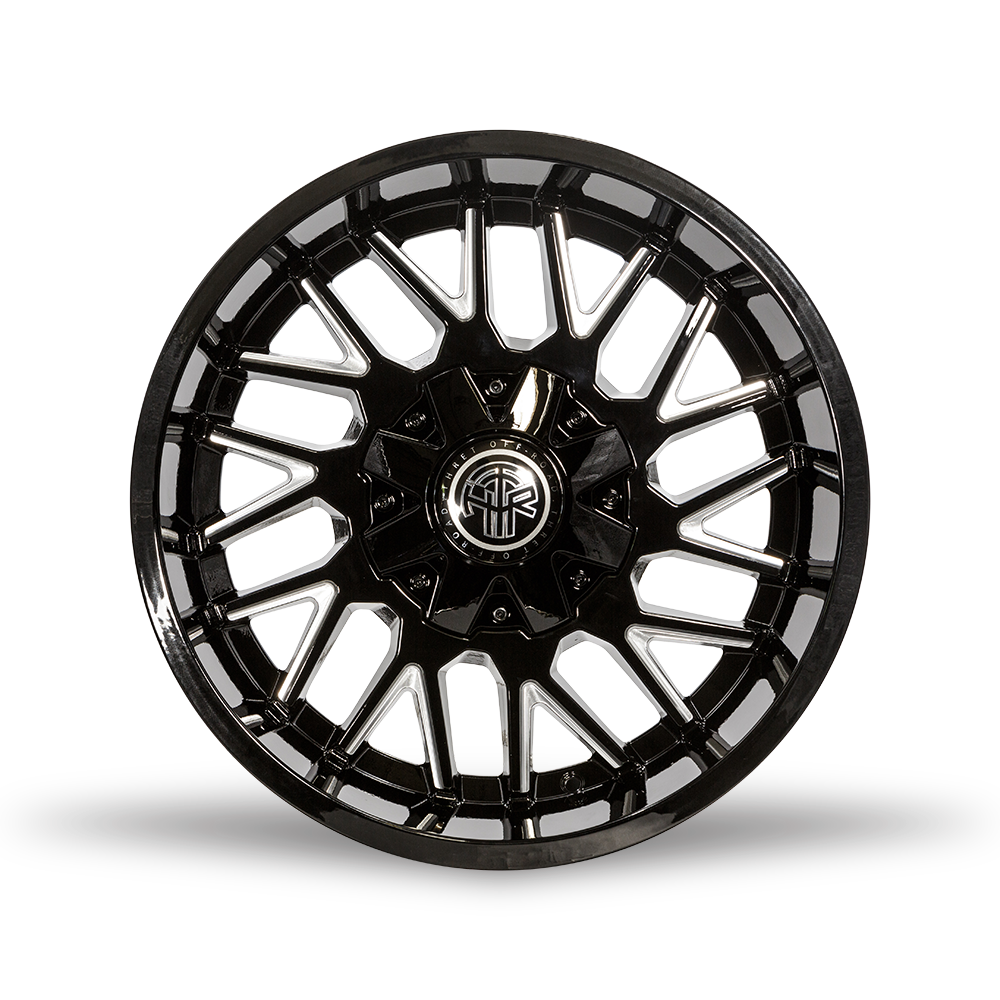

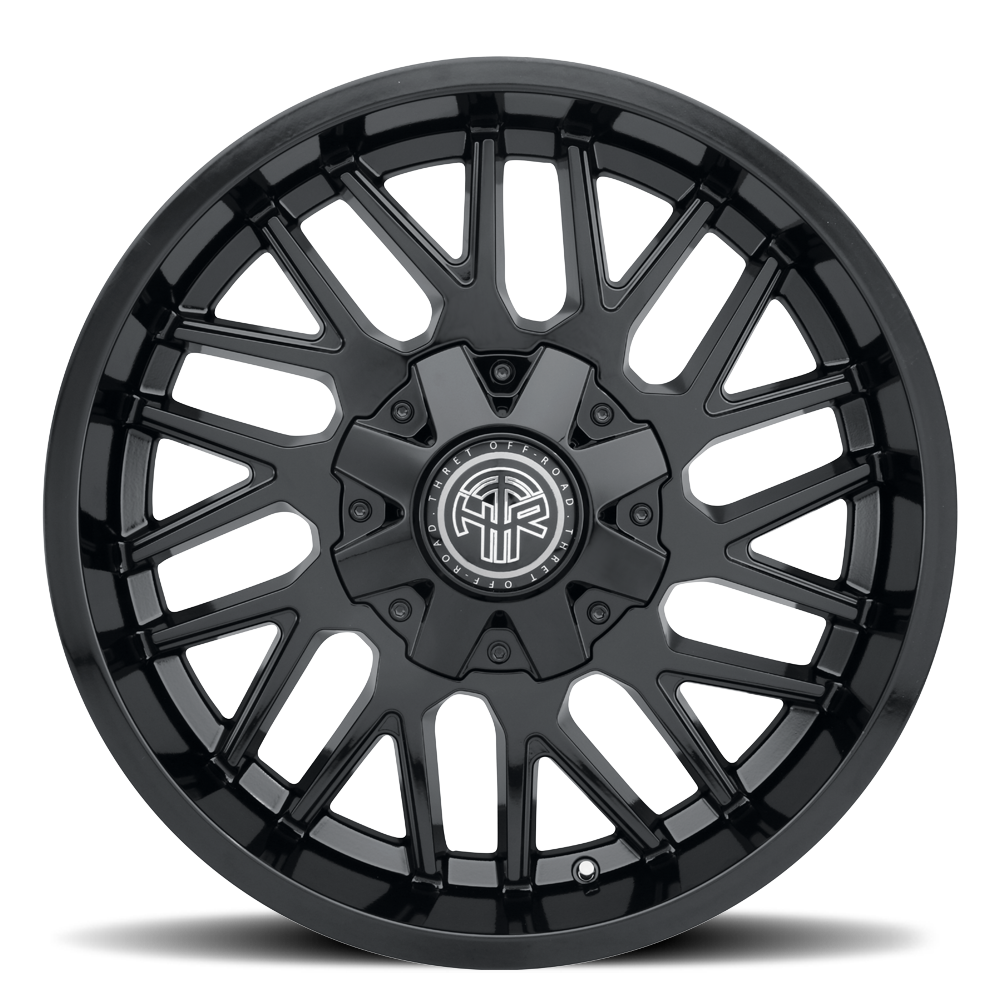

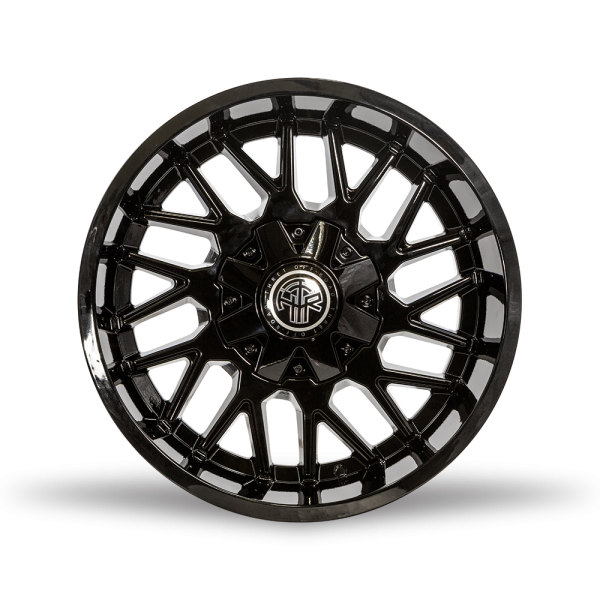

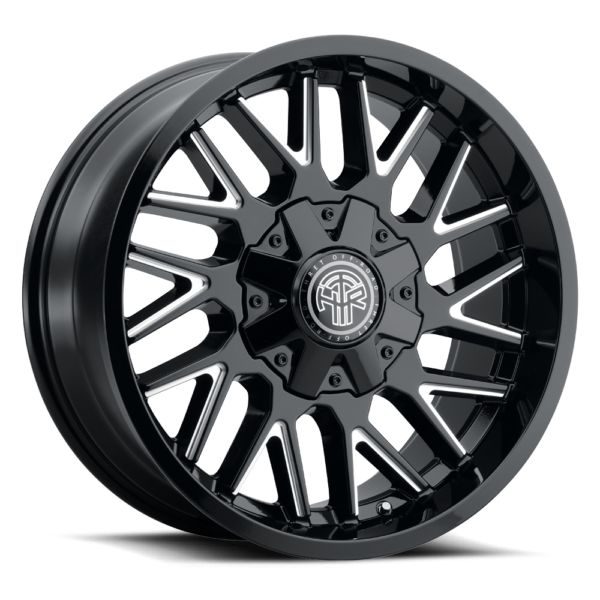

The Thret Revolver 803 Wheel is a 10 split spoke design with a ‘twist’ that is available in full gloss black or Black and Milled. The Revolver Wheel is available in 5, 6, and 8 lug applications in a variety of offsets and sizes.
Key Features:
- Compatibility options for 5, 6, and 8 lug applications to suit a wide range of vehicles.
Sizes Available:
- 17 x 9
- 18 x 9
- 20 x 9
- 20 x 10
| Brand | Part # | Name | Style | Diameter | Width | Hub | PCD1 | PCD2 | Offset | Cap | Finish | Load Rating | UPC | Backspace |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thret | 803A-1790FJ-12 | Revolver | 803 | 17 | 9.0 | 87.1 | 5x114.3 | 5x127 | -12 | Gloss Black | 2500 | 840177404634 | 4.5 | |
| Thret | 803A-1790FJ18 | Revolver | 803 | 17 | 9.0 | 87.1 | 5x114.3 | 5x127 | 18 | Gloss Black | 2500 | 840177404641 | 5.7 | |
| Thret | 803A-1790TU-12 | Revolver | 803 | 17 | 9.0 | 106.1 | 6x135 | 6x139.7 | -12 | Gloss Black | 2500 | 840177404658 | 4.5 | |
| Thret | 803A-1790TU18 | Revolver | 803 | 17 | 9.0 | 106.1 | 6x135 | 6x139.7 | 18 | Gloss Black | 2500 | 840177404665 | 5.7 | |
| Thret | 803A-1790VW0 | Revolver | 803 | 17 | 9.0 | 125.2 | 8x165.1 | 8x170 | 0 | Gloss Black | 3800 | 840177404672 | 5 | |
| Thret | 803A-1790VW18 | Revolver | 803 | 17 | 9.0 | 125.2 | 8x165.1 | 8x170 | 18 | Gloss Black | 3800 | 840177404689 | 5.7 | |
| Thret | 803A-1890FJ-12 | Revolver | 803 | 18 | 9.0 | 87.1 | 5x114.3 | 5x127 | -12 | Gloss Black | 2500 | 840177404696 | 4.5 | |
| Thret | 803A-1890FJ18 | Revolver | 803 | 18 | 9.0 | 87.1 | 5x114.3 | 5x127 | 18 | Gloss Black | 2500 | 840177404702 | 5.7 | |
| Thret | 803A-1890TU-12 | Revolver | 803 | 18 | 9.0 | 106.1 | 6x135 | 6x139.7 | -12 | Gloss Black | 2500 | 840177404719 | 4.5 | |
| Thret | 803A-1890TU18 | Revolver | 803 | 18 | 9.0 | 106.1 | 6x135 | 6x139.7 | 18 | Gloss Black | 2500 | 840177404726 | 5.7 | |
| Thret | 803A-1890VW0 | Revolver | 803 | 18 | 9.0 | 125.2 | 8x165.1 | 8x170 | 0 | Gloss Black | 3800 | 840177404733 | 5 | |
| Thret | 803A-1890VW18 | Revolver | 803 | 18 | 9.0 | 125.2 | 8x165.1 | 8x170 | 18 | Gloss Black | 3800 | 840177404740 | 5.7 | |
| Thret | 803A-2010JM-21 | Revolver | 803 | 20 | 10 | 87.1 | 5x127 | 5x139.7 | -21 | Gloss Black | 2500 | 840177401374 | 4.6 | |
| Thret | 803A-2010TU-21 | Revolver | 803 | 20 | 10 | 106.1 | 6x135 | 6x139.7 | -21 | Gloss Black | 2500 | 840177401381 | 4.6 | |
| Thret | 803A-2010VW-21 | Revolver | 803 | 20 | 10 | 125.2 | 8x165.1 | 8x170 | -21 | Gloss Black | 3800 | 840177401398 | 4.6 | |
| Thret | 803A-2010X-21 | Revolver | 803 | 20 | 10 | 125.2 | 8x180 | 8x170 | -21 | Gloss Black | 3800 | 840177404757 | 4.6 | |
| Thret | 803A-2090JM0 | Revolver | 803 | 20 | 9.0 | 87.1 | 5x127 | 5x139.7 | 0 | Gloss Black | 2500 | 840177404764 | 5 | |
| Thret | 803A-2090JM18 | Revolver | 803 | 20 | 9.0 | 87.1 | 5x127 | 5x139.7 | 18 | Gloss Black | 2500 | 840177404771 | 5.7 | |
| Thret | 803A-2090TU-12 | Revolver | 803 | 20 | 9.0 | 106.1 | 6x135 | 6x139.7 | -12 | Gloss Black | 2500 | 840177404788 | 4.5 | |
| Thret | 803A-2090TU0 | Revolver | 803 | 20 | 9.0 | 106.1 | 6x135 | 6x139.7 | 0 | Gloss Black | 2500 | 840177404795 | 5 | |
| Thret | 803A-2090TU18 | Revolver | 803 | 20 | 9.0 | 106.1 | 6x135 | 6x139.7 | 18 | Gloss Black | 2500 | 840177404801 | 5.7 | |
| Thret | 803A-2090VW0 | Revolver | 803 | 20 | 9.0 | 125.2 | 8x165.1 | 8x170 | 0 | Gloss Black | 3800 | 840177404818 | 5 | |
| Thret | 803A-2090VW18 | Revolver | 803 | 20 | 9.0 | 125.2 | 8x165.1 | 8x170 | 18 | Gloss Black | 3800 | 840177404825 | 5.7 | |
| Thret | 803A-2090X18 | Revolver | 803 | 20 | 9.0 | 125.2 | 8x180 | 18 | Gloss Black | 3800 | 840177404832 | 5.7 |
| Brand | Part # | Name | Style | Diameter | Width | Hub | PCD1 | PCD2 | Offset | Cap | Finish | Load Rating | UPC | Backspace |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thret | 803GD-1790FJ-12 | Revolver | 803 | 17 | 9.0 | 87.1 | 5x114.3 | 5x127 | -12 | Gloss Black / Milled | 2500 | 840177404849 | 4.5 | |
| Thret | 803GD-1790FJ18 | Revolver | 803 | 17 | 9.0 | 87.1 | 5x114.3 | 5x127 | 18 | Gloss Black / Milled | 2500 | 840177404856 | 5.7 | |
| Thret | 803GD-1790TU-12 | Revolver | 803 | 17 | 9.0 | 106.1 | 6x135 | 6x139.7 | -12 | Gloss Black / Milled | 2500 | 840177404863 | 4.5 | |
| Thret | 803GD-1790TU18 | Revolver | 803 | 17 | 9.0 | 106.1 | 6x135 | 6x139.7 | 18 | Gloss Black / Milled | 2500 | 840177404870 | 5.7 | |
| Thret | 803GD-1790VW0 | Revolver | 803 | 17 | 9.0 | 125.2 | 8x165.1 | 8x170 | 0 | Gloss Black / Milled | 3800 | 840177404887 | 5 | |
| Thret | 803GD-1790VW18 | Revolver | 803 | 17 | 9.0 | 125.2 | 8x165.1 | 8x170 | 18 | Gloss Black / Milled | 3800 | 840177404894 | 5.7 | |
| Thret | 803GD-1890FJ-12 | Revolver | 803 | 18 | 9.0 | 87.1 | 5x114.3 | 5x127 | -12 | Gloss Black / Milled | 2500 | 840177404900 | 4.5 | |
| Thret | 803GD-1890FJ18 | Revolver | 803 | 18 | 9.0 | 87.1 | 5x114.3 | 5x127 | 18 | Gloss Black / Milled | 2500 | 840177404917 | 5.7 | |
| Thret | 803GD-1890TU-12 | Revolver | 803 | 18 | 9.0 | 106.1 | 6x135 | 6x139.7 | -12 | Gloss Black / Milled | 2500 | 840177404924 | 4.5 | |
| Thret | 803GD-1890TU18 | Revolver | 803 | 18 | 9.0 | 106.1 | 6x135 | 6x139.7 | 18 | Gloss Black / Milled | 2500 | 840177404931 | 5.7 | |
| Thret | 803GD-1890VW0 | Revolver | 803 | 18 | 9.0 | 125.2 | 8x165.1 | 8x170 | 0 | Gloss Black / Milled | 3800 | 840177404948 | 5 | |
| Thret | 803GD-1890VW18 | Revolver | 803 | 18 | 9.0 | 125.2 | 8x165.1 | 8x170 | 18 | Gloss Black / Milled | 3800 | 840177404955 | 5.7 | |
| Thret | 803GD-2090JM0 | Revolver | 803 | 20 | 9.0 | 87.1 | 5x127 | 5x139.7 | 0 | Gloss Black / Milled | 2500 | 840177405006 | 5 | |
| Thret | 803GD-2090JM18 | Revolver | 803 | 20 | 9.0 | 87.1 | 5x127 | 5x139.7 | 18 | Gloss Black / Milled | 2500 | 840177405013 | 5.7 | |
| Thret | 803GD-2090TU-12 | Revolver | 803 | 20 | 9.0 | 106.1 | 6x135 | 6x139.7 | -12 | Gloss Black / Milled | 2500 | 840177405020 | 4.5 | |
| Thret | 803GD-2090TU0 | Revolver | 803 | 20 | 9.0 | 106.1 | 6x135 | 6x139.7 | 0 | Gloss Black / Milled | 2500 | 840177405037 | 5 | |
| Thret | 803GD-2090TU18 | Revolver | 803 | 20 | 9.0 | 106.1 | 6x135 | 6x139.7 | 18 | Gloss Black / Milled | 2500 | 840177405044 | 5.7 | |
| Thret | 803GD-2090VW0 | Revolver | 803 | 20 | 9.0 | 125.2 | 8x165.1 | 8x170 | 0 | Gloss Black / Milled | 3800 | 840177405051 | 5 | |
| Thret | 803GD-2090VW18 | Revolver | 803 | 20 | 9.0 | 125.2 | 8x165.1 | 8x170 | 18 | Gloss Black / Milled | 3800 | 840177405068 | 5.7 | |
| Thret | 803GD-2090X18 | Revolver | 803 | 20 | 9.0 | 125.2 | 8x180 | 8x170 | 18 | Gloss Black / Milled | 3800 | 840177405075 | 5.7 | |
| Thret | 803AD-2010JM-21 | Revolver | 803 | 20 | 10 | 87.1 | 5x127 | 5x139.7 | -21 | Gloss Black / Milled | 2500 | 840177401404 | 4.6 | |
| Thret | 803AD-2010TU-21 | Revolver | 803 | 20 | 10 | 106.1 | 6x135 | 6x139.7 | -21 | Gloss Black / Milled | 2500 | 840177401411 | 4.6 | |
| Thret | 803AD-2010VW-21 | Revolver | 803 | 20 | 10 | 125.2 | 8x165.1 | 8x170 | -21 | Gloss Black / Milled | 3800 | 840177401428 | 4.6 | |
| Thret | 803AD-2010X-21 | Revolver | 803 | 20 | 10 | 125.2 | 8x180 | -21 | Gloss Black / Milled | 3800 | 840177403729 | 4.6 |
